Hardware

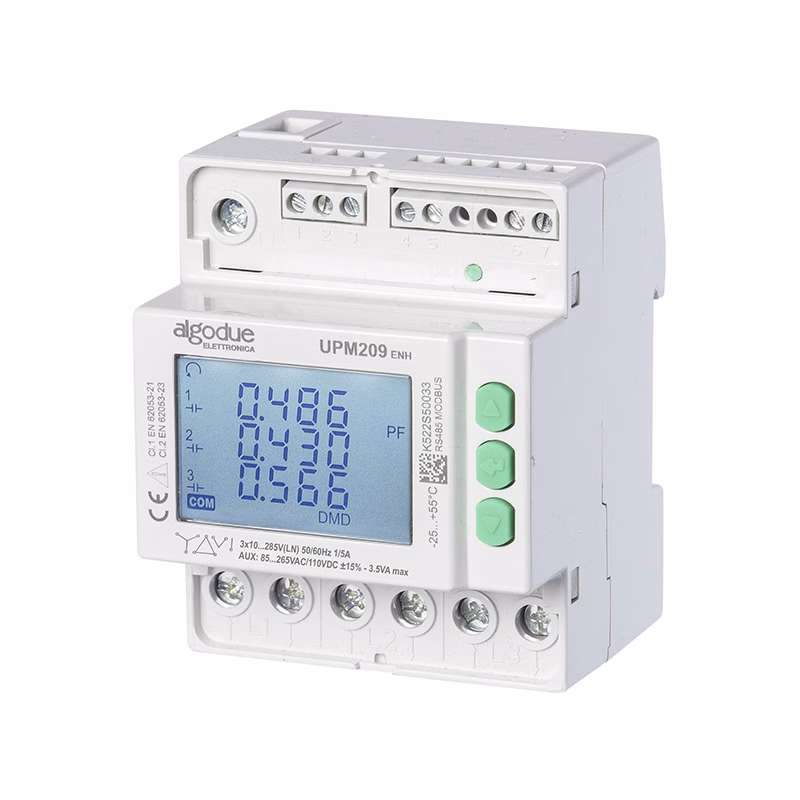

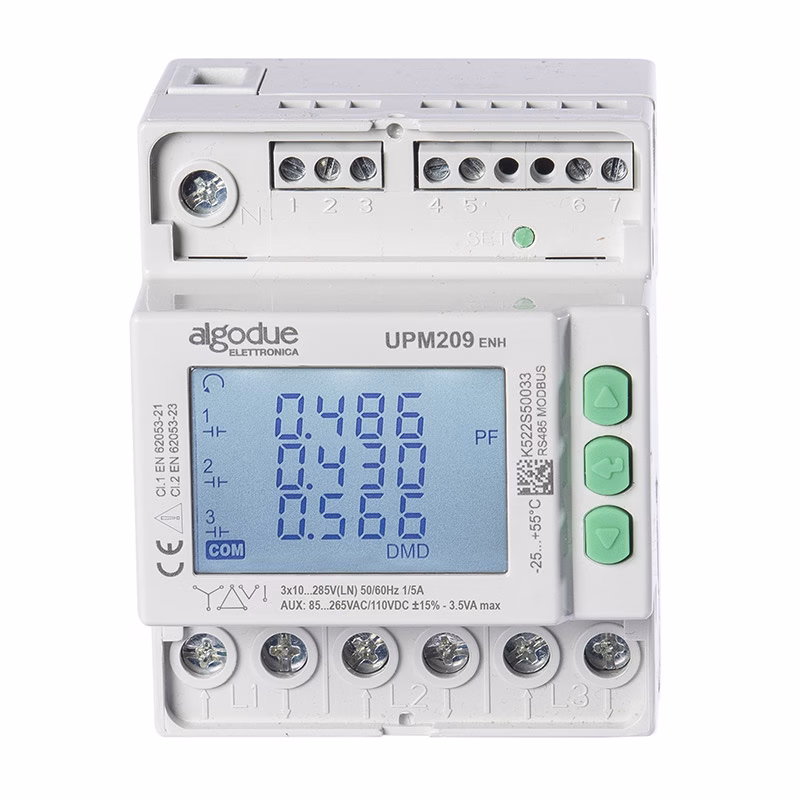

Algodue Multifunction Meter Kit

This meter kit is suitable for dynamic load management of the Etrel Inch Pro and Inch Duo chargers with power sources up to 20,000A.

If you would like to purchase this product, please contact us at
info@thundergrid.net for more information.

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , ,

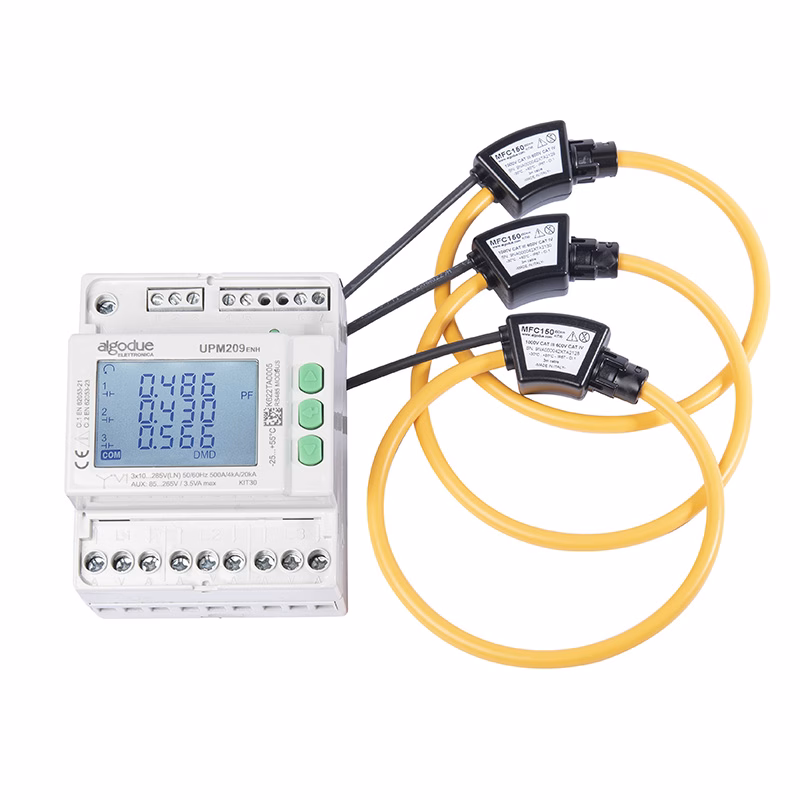

This meter is suitable for dynamic load management of the Etrel Inch Pro and Inch Duo chargers with power sources up to 20,000A. The kit comes with Rogowski coils.

Great for

  • Inch Pro
  • Inch Duo
  • Enables dynamic load management. The Algodue meter used in conjunction with Etrel chargers provides detection of the available electrical supply and automatic adjustment of charging power, preventing any overloading scenarios from charging operations.
  • Included current transformers. Two options (150A and 400A) depending on the rating of the incoming power.
  • Simple communications setup. An Ethernet connection through a network switch or direct to the charger allows for communication to the charging stations.
  • Easy installation. The small Load Guard unit can be installed on a standard DIN rail, and the included split core current transformers can be connected without having to disconnect the incoming power cables in the switchboard.
  • Single-phase and three-phase operations
  • Voltage inputs: Up to 230 VAC phase voltage
  • Frequency: 50/60 Hz

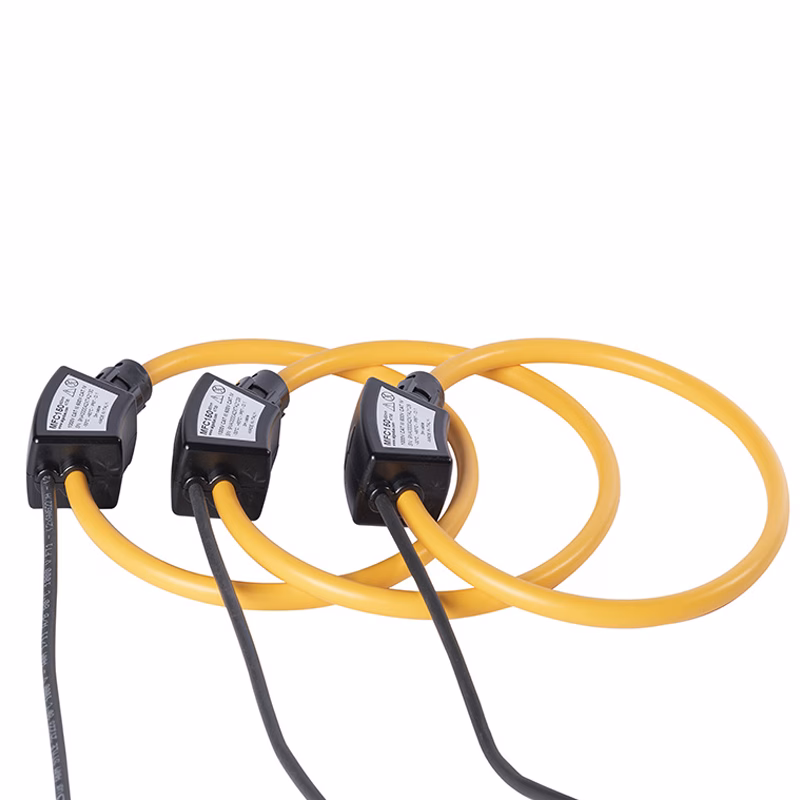

  • Rogowski coils with selectable scales (500/4000/20,000A)
  • Device connectivity via Ethernet (Modbus TCP)
  • Dimensions: Width 72mm / Height 90mm / Depth 64mm
Download technical data sheet
