Hardware

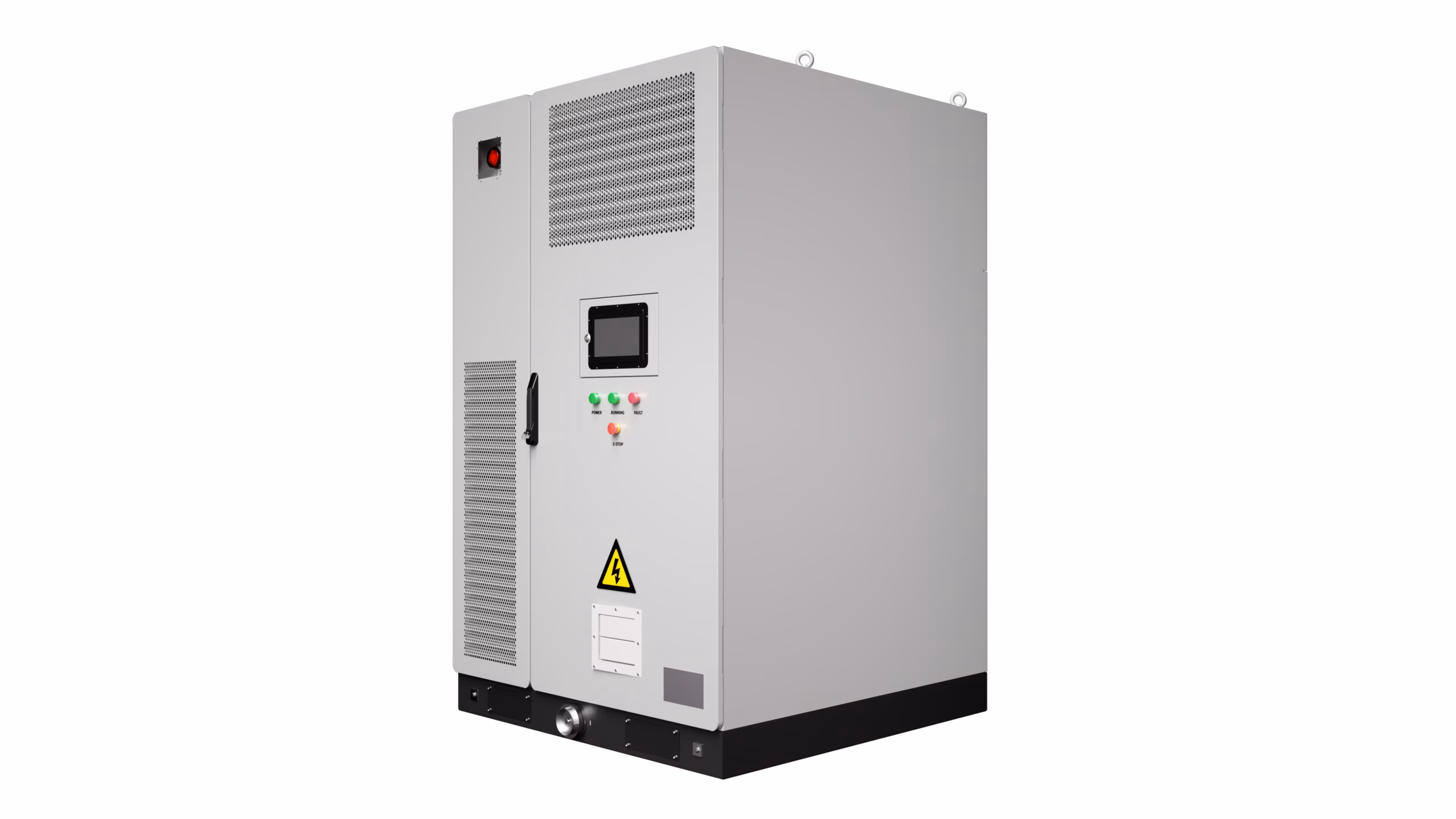

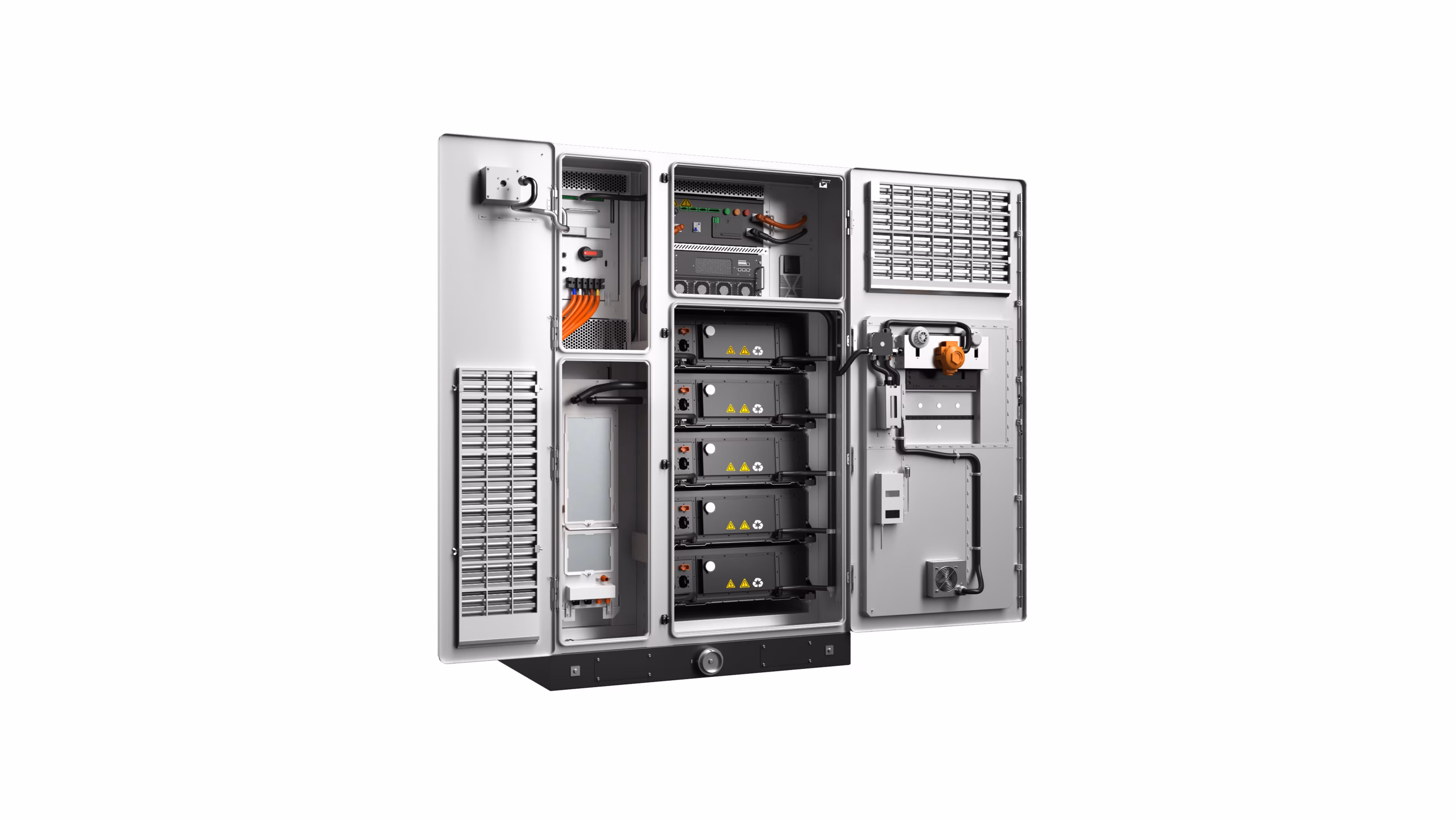

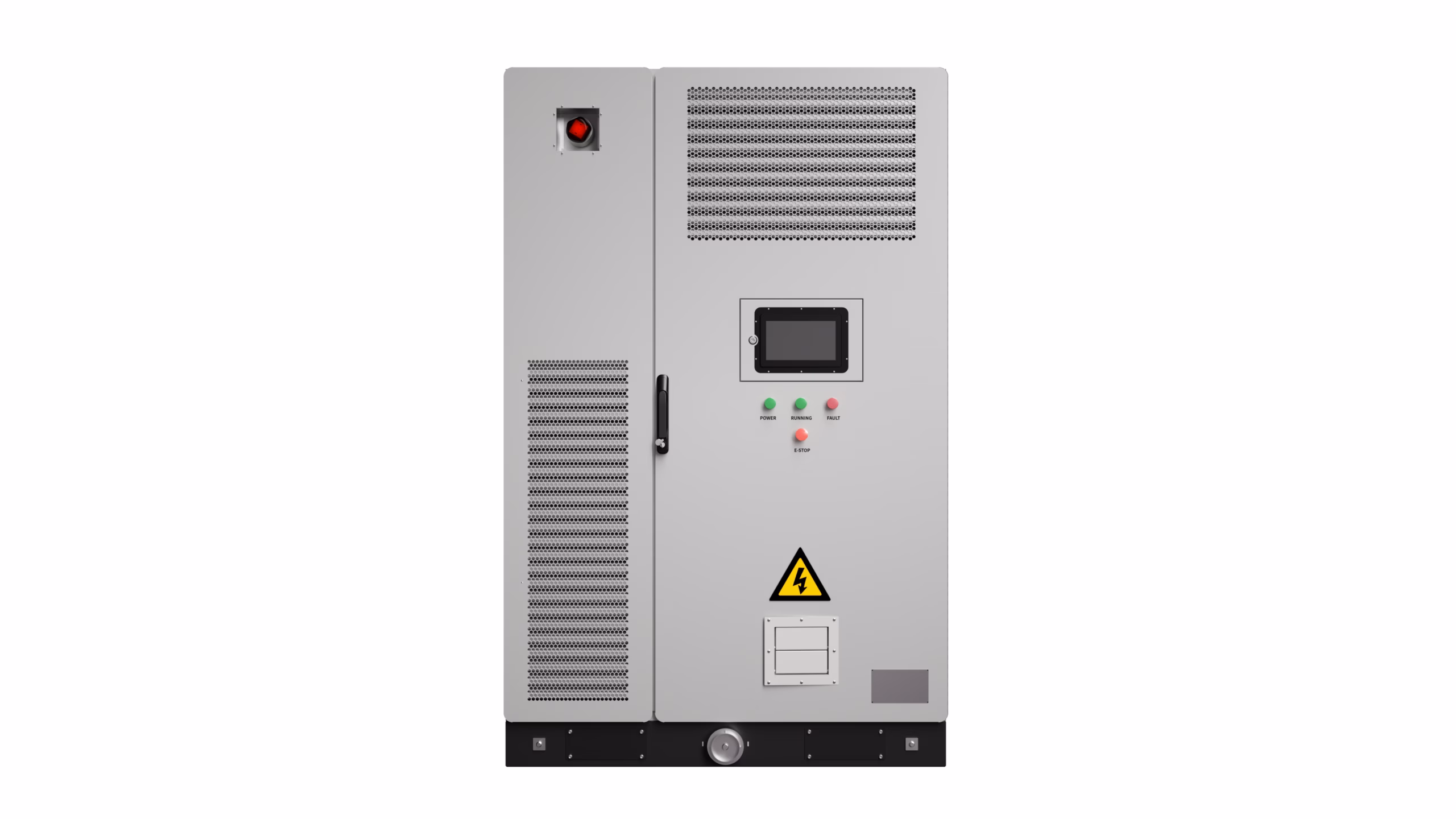

Linyang Power-Key 254 Energy Storage Cabinet

The smart liquid cooled energy storage cabinet provides 254 kWh of capacity with a rated power output of 125 kW that can be utilized for EV charging or other electrical equipment.

If you would like to purchase this product, please contact us at
info@thundergrid.net for more information.

Categories: , , Tags: , , , , , , , , , , , , , , , , , ,

The smart liquid cooled energy storage cabinet provides 254 kWh of capacity with a rated power output of 125 kW that can be utilized for EV charging or other electrical equipment.

Great for

  • Supporting fast charging stations by providing onsite battery storage without requiring any costly grid upgrades.
  • Renewable energy integration by storing excess energy producing during peak generation and providing that energy during low generation times to provide a stable supply.
  • Peak shaving by reducing demand charges by discharging stored energy during peak load times.
  • Battery storage for a variety of electrical needs. The smart liquid cooled energy storage cabinet provides 254 kWh of capacity with a rated power output of 125 kW that can be utilized for EV charging or other electrical equipment.
  • High flexibility. A modular design and flexible configuration that allows for multiple cabinets to be connected in parallel to boost the storage and output capacities. Up to four units can be combined to give storage capacity exceeding 1 MWh with a rated power of 500 kW.
  • Compact unit for easy installation. With a small footprint, the PowerKey unit can be installed in any location without needing a large space, also making it easy to relocate and utilize at other sites if required.
  • Multiple operating modes. Scheduling, Eco, Backup Power, and Manual mode offer a range of operating functions to meet site electrical demands or provide power during peak times to reduce grid electrical consumption.
  • Fire protection systems. Each battery pack is equipped with a modular fire suppression device which can automatically detect and active fire suppression systems. A connection for water services provides an additional measure for firefighting in the event of a fault.
  • 254 kWh storage using lithium ion phosphate batteries.
  • 125 kW rated power.
  • Capability to connect four PowerKey-254 units in parallel to expand storage and power outputs.
  • Integrated LCD touch screen for operator interface.
  • Device connectivity via Ethernet.
  • Outdoor rated enclosure with IP54 (ingress protection rating).
  • Dimensions: Width 1420mm / Height 2312mm / Depth 1470mm
Download technical data sheet
