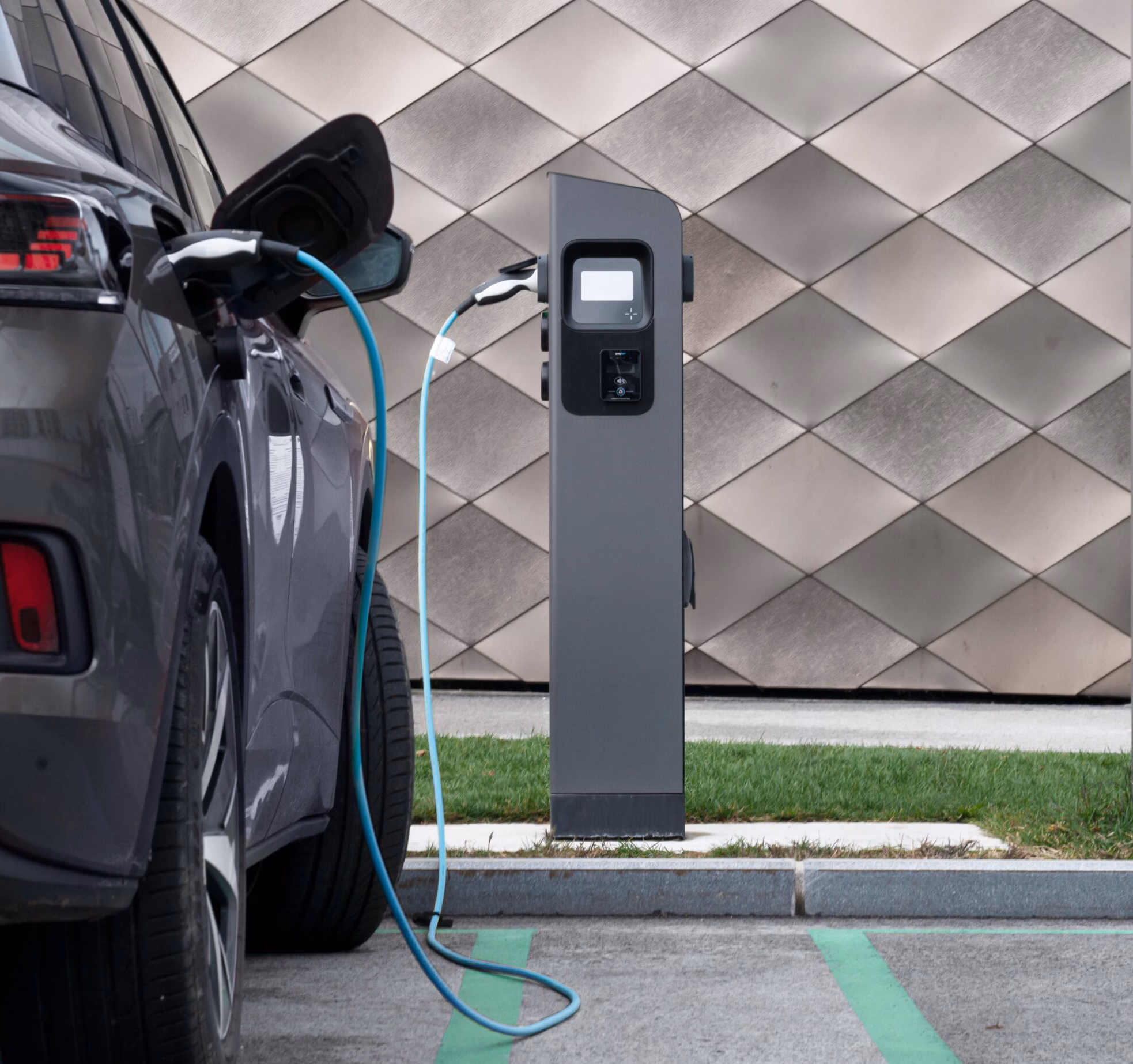

Inch Duo EV charging dual outlet sturdy multi-colour display screen
Thundergrid Inch Duo smart EV charging two outlets

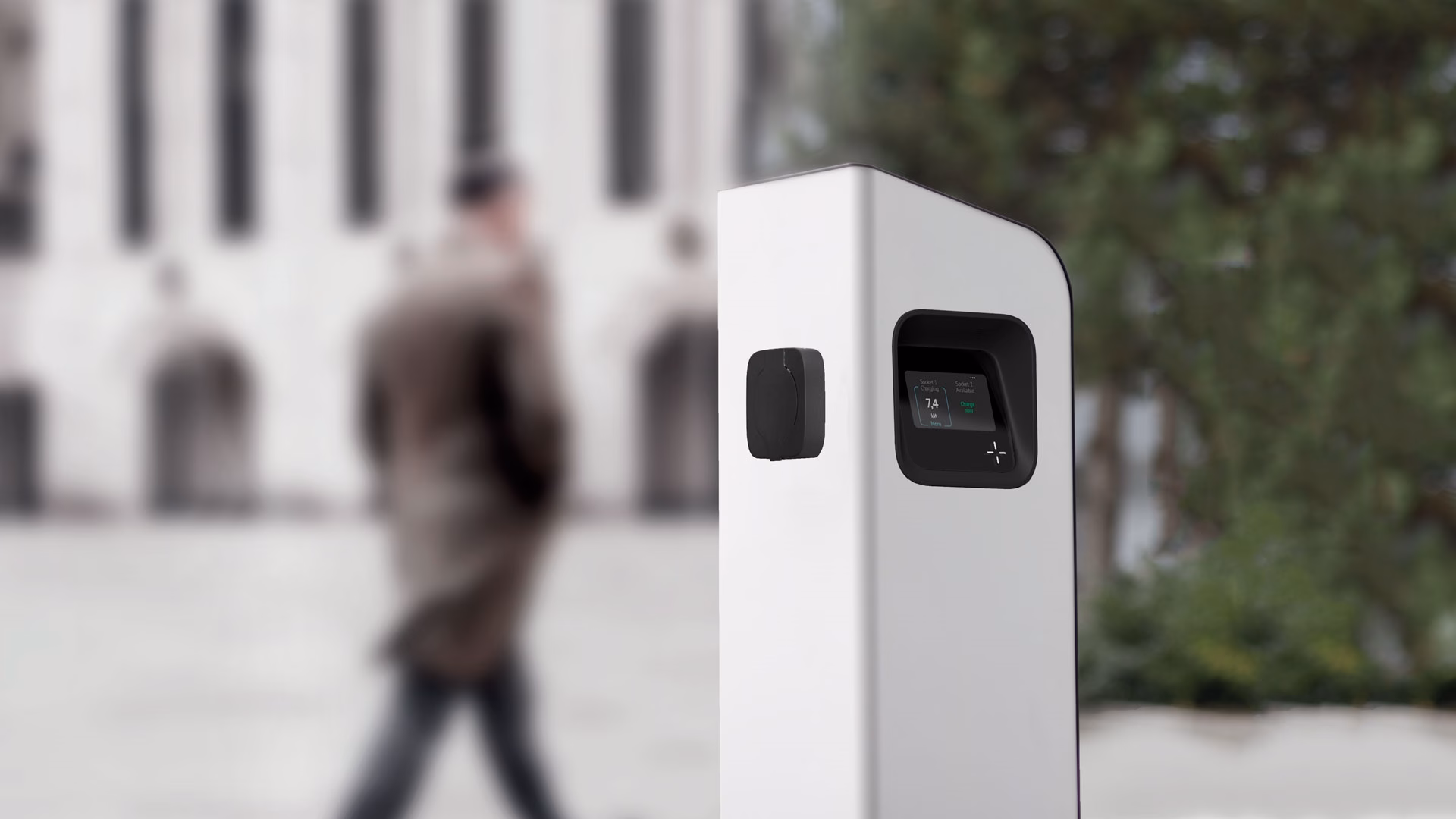

Inch Duo two outlets full LED colour display smart EV charging
INCH Duo smart EV charger - Image 4
Hardware

INCH Duo smart EV charger

Enquire

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,

This stylish smart EV charger is not only robust but delivers 22kW of power for two cars at once and includes dynamic load management. It’s a great choice for fleet or bigger business and commercial charging.



We highly recommend purchasing this smart EV charger with either the Inch Loadguard or the Algodue to enable dynamic load management.



Compatible with all EV brands!

Great for

  • External parking areas where free-standing solutions are required.
  • Commercial buildings where a number of chargers are required for different tenants, cost recovery is required and load management for the building is a priority.
  • Corporate and Government fleets that require EV chargers with power cost recovery, extensive reporting features and management, a variety of access options and more.
  • Hospitality / Retail and Car Parks wishing to offer public charging.
  • Similar to the Inch Pro but with two outlets to charge two EVs simultaneously
  • Compact, ergonomic design. The design of the Inch Duo makes it perfect for installation in locations with limited available space. Its large display and straightforward charging instructions, combined with payment options, offer convenience to users.
  • Durable. Made of robust stainless steel for outstanding durability in all weather conditions.
  • Optional integration with external sensor devices like parking sensors help enhance infrastructure accessibility and optimise usage patterns.
  • Power management capabilities can be further extended with a Load Guard to balance the available charging power between chargers, ensuring even distribution of charging power among plugged-in vehicles while respecting the power grid and any limitations.

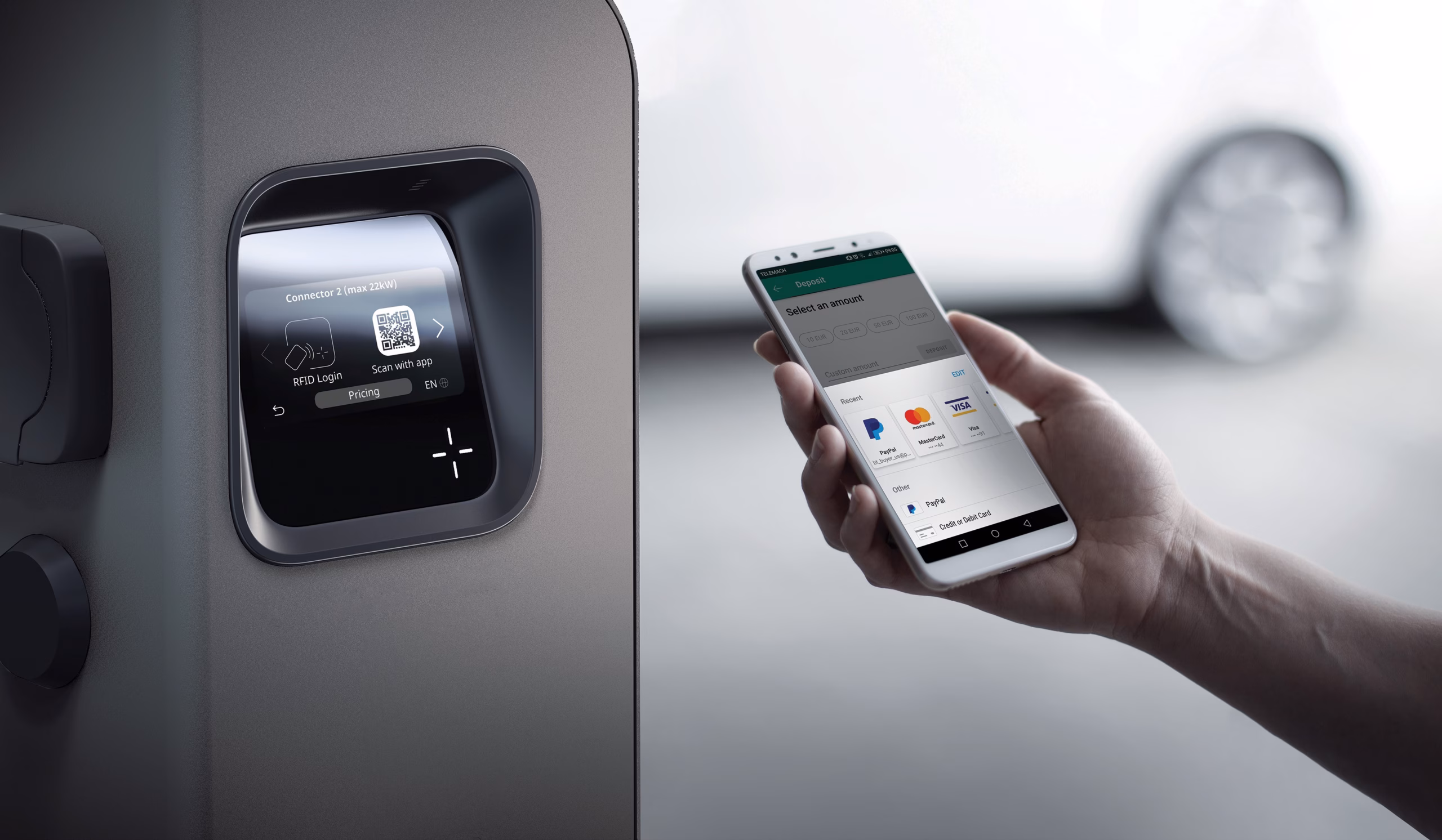

  • Contactless credit card payment and straightforward user interface deliver a simplified charging experience.
  • Easy installation. A wide-angle door opening and modular components shorten the field service time and simplify maintenance. Multiple Duos can be daisy-chained together to reduce cabling cost and complexities.
  • Max charging power: 2 x 22kW (3 x 32 A per connector) adjustable. Type 2 socket with cable lock
  • Protection: IP 54, IK 10 protection
  • Electrical protection: DC fault current sensor 6 mA + RCD Type A or RCD Type A EV or RCD Type B, MCB char. C, 40 A
  • User identification: PIN code, RFID, App*, SMS** when connected with our back-end system
  • Payment: Payment with contactless payment terminal (optional) or via Thundergrid web app
  • Communication: Ethernet or SIM card
  • EV Communication: IEC 61851 supported, IEC 15118 ready
  • Connectivity: OCPP 1.6 SOAP & JSON, OCPP 2.0 JSON (upcoming), Modbus TCP
  • Load balancing: Static load balancing between the two sockets, and dynamic load balancing with a Load Guard.
  • Clusters: Can be clustered with other chargers
  • Materials: Stainless steel with anti-corrosion protection and polycarbonate display cover
Download technical data sheet
