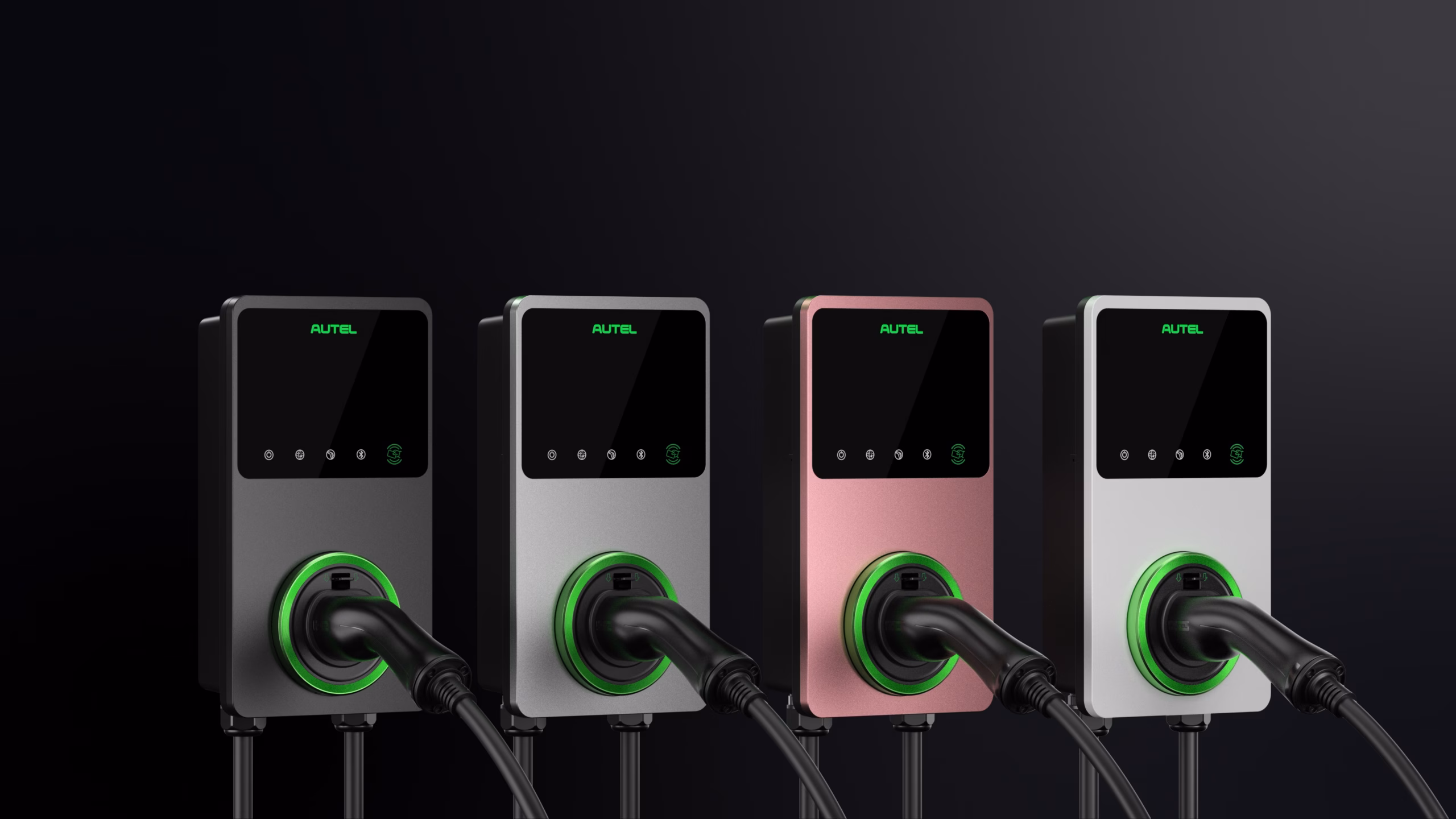

Colour range colours Autel Wallbox no screen MaxiCharge Thundergrid tesla smart EV home charger
Autel MaxiCharger AC Wallbox without LCD screen - Image 5
Rose Autel Wallbox no screen MaxiCharge Thundergrid Tesla app controll smart EV home charger
Hardware

Autel MaxiCharger AC Wallbox without LCD screen

Enquire

SKU: N/A Categories: , Tags: , , , , , , , , , , , , , , , , , , , , ,

Great smart EV home charger that ticks all the boxes for an efficient, app-controlled faster charging of your EV while protecting your home.



THIS IS AN EECA APPROVED SMART EV HOMECHARGER



Compatible with all EV brands!

Great for

  • Home EV charging – Manage existing power demands e.g. underfloor heating, electric ovens, induction hobs etc.
  • Apartment charging that requires billing for a communal power supply and cost recovery.
  • Business fleet at home EV charging – Support business charging at some by tracking and reimbursing for private energy use.
  • Small businesses – Support small business fleets with detail reporting of energy use
  • Delivers up to 22kW of power on three-phase power (7.4kW on single-phase power).
  • Dynamic load balancing. A separate energy meter is installed on the building’s distribution board to measure electrical currents and send real-time data to the charging station. The charging stations can respond and increase or decrease the power provided to EVs. This prevents overloading your building’s distribution board, avoiding circuit breaker trips and reducing the need for costly electrical upgrades.
  • Power sharing. Up to 8 MaxiCharger AC Wallbox units can be grouped together to share the available energy and assign charging priority to users who need it most. One unit will be assigned as the lead charger and will communicate to the others over a local area network.
  • PV Hybrid mode. Multiple charging modes compatible with applications utilizing renewable (solar) electricity. These modes can allow the charger to only be utilized when there is surplus renewable electricity available or permits the charger to receive power from both the solar energy and the grid power.
  • Several connectivity options. With a variety of connectivity options including Ethernet, Wi-Fi, and a SIM card for cellular communications this charger can be easily connected to a charge point management system or other chargers.
  • A variety of access options can be set to either:
    • Free access enabling users to simply plug in and charge (suitable for free chargers or when chargers are in a secure garage)
    • Require an RFID tag to unlock the charger (suitable for locations where you want to restrict access).
  • Customise your settings via the app. Access in-depth insights into your charging, set charging guidelines and power limits for smart, cost-efficient charging.
  • Tethered cable with Type 2 outlet (IEC 62196-2)
  • Type 2 socket (IEC 62196-2)
  • Up to 22kW charging power on three-phase power (or up to 7.4kW on single-phase power)
  • LED status indicators
  • Device connectivity via Wi-Fi, Bluetooth, Ethernet, Cellular Networks, RFID reader, and RS485
  • Inbuilt protection monitoring of overcurrent, overtemperature, overvoltage, undervoltage, and ground fault including DC residual currents.
  • Integrated surge protection
  • Open Charge Point Protocol (OCPP) 1.6J communications
  • Protection Socket model IP54 (ingress protection rating) and cable model IP65. Both models have IK08 (impact rating).
  • Dimensions: Width 187mm / Height 336mm / Depth 115mm
Download technical data sheet
