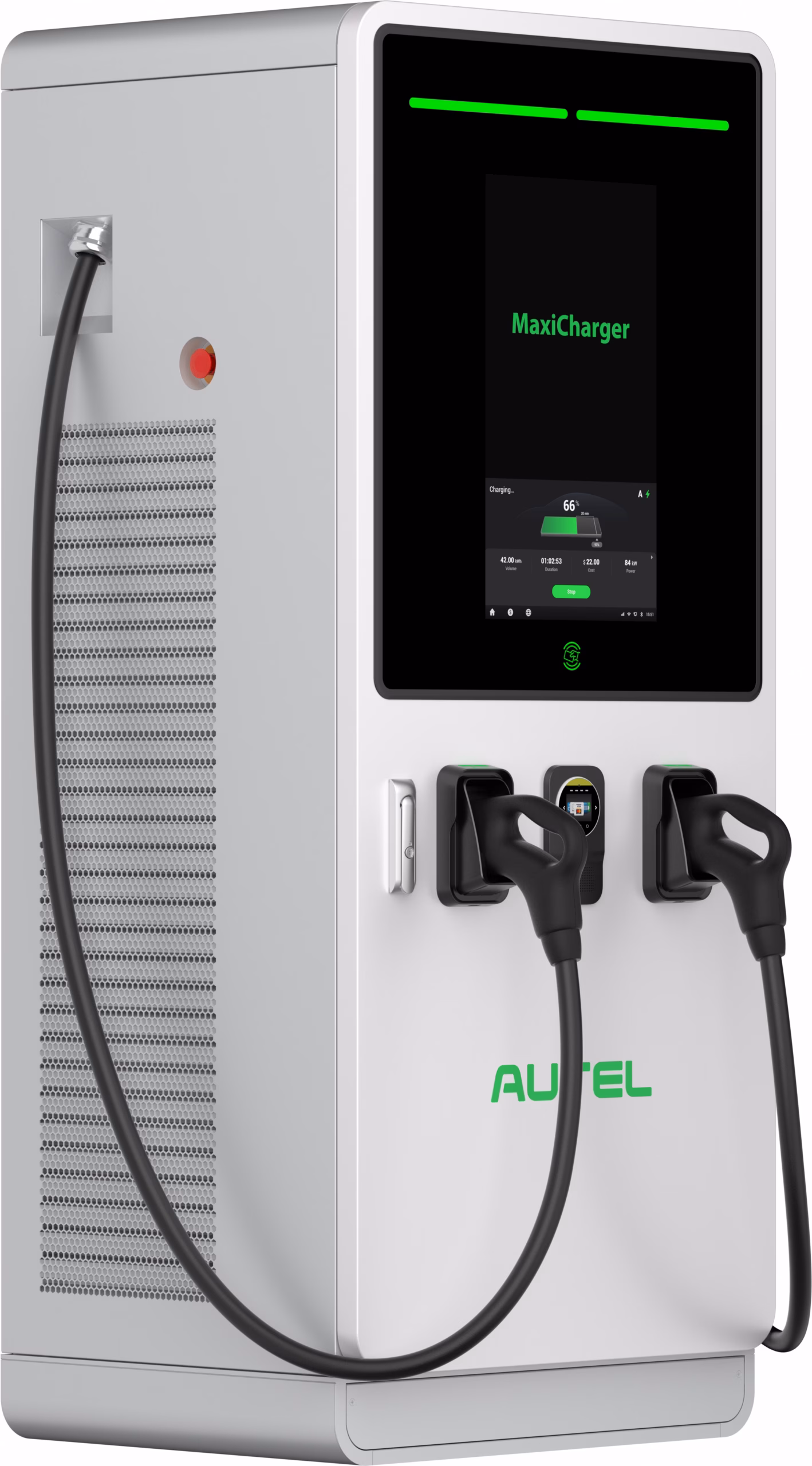

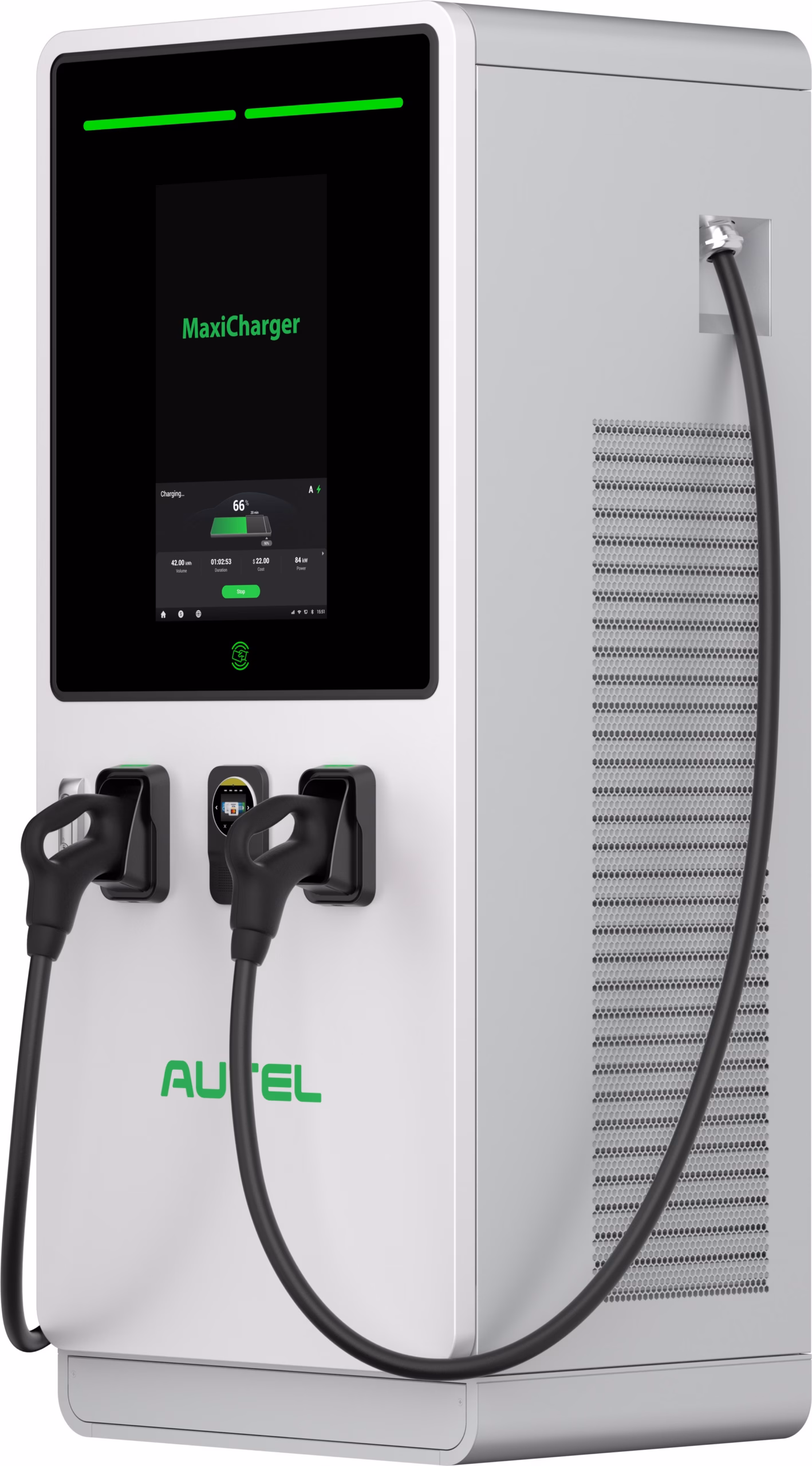

Autel MaxiCharger DC Fast 60-240 kW

Enquire

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , ,

A perfect rapid smart charger for fleets needing a fast top-up, last-mile delivery vans or public fast-charging with a user dwell time of 30 minutes to two hours.



Compatible with all EV brands!

Great for

  • Commercial fleets looking for a rapid charging option, in addition to slower AC chargers, for when users need to top-up quickly.
  • Public charging at airports, car parks, hotels, hospitality venues, supermarkets and campuses that want to offer a fast-charging option for users with dwell times of 30 minutes to 2 hours (time to fill battery will depend on the size of the EV’s battery).
  • Delivers from 60 – 240kW of power on DC fast power charging. The output power can easily be increased with 20 kW power modules for future expansion. Dual outlets on this DC charger allow for charging two EVs simultaneously.
  • 96% efficiency at full power means the MaxiCharger DC Fast delivers world-class power efficiency, letting drivers get the most out of their charging sessions.
  • Dynamic load balancing. A separate energy meter is installed on the building’s distribution board to measure electrical currents and send real-time data to the charging station. The charging stations can respond and increase or decrease the power provided to EVs. This prevents overloading your building’s distribution board, avoiding circuit breaker trips and reducing the need for costly electrical upgrades.
  • Power sharing. Up to 40 additional Autel AC or DC chargers can be grouped together with the DC Fast unit to share the available energy and assign charging priority to users who need it most. One unit will be assigned as the lead charger and will communicate to the others over a local area network.
  • LCD Touchscreen. A 27-inch colour touchscreen for user interface. This screen is used for starting and stopping charge sessions, showing the status of ongoing charging, cost details of previous sessions, and configuration and maintenance procedures.
  • PV Hybrid mode. Multiple charging modes compatible with applications utilizing renewable (solar) electricity. These modes can allow the charger to only be utilized when there is surplus renewable electricity available or permits the charger to receive power from both the solar energy and the grid power.
  • Several connectivity options. With a variety of connectivity options including Ethernet, Wi-Fi, and a SIM card for cellular communications this charger can be easily connected to a charge point management system or other chargers.
  • A variety of access options can be set to either:
    • Free access enabling users to simply plug in and charge (suitable for when chargers are in a secure garage)
    • One-off charging for clients by scanning a QR code on the digital display screen of the charger that leads them straight to a payment portal to charge without downloading an app or creating an account
    • Require an RFID tag to unlock the charger (suitable for locations where you want to restrict access).
  • Durable outdoor rated enclosure. A sturdy weather resistant enclosure with an IK10 rating, the MaxiCharger DC Fast comes with the highest rated level of resistance to impact. Combined with an IP55 rating for water, dust, and debris, this charger is suitable for indoor or outdoor use.
  • Customise your settings directly on the charger touchscreen. Access in-depth insights into your charging, set charging guidelines and power limits for smart, cost-efficient charging.
  • 4.5m tethered cables with CCS2 connectors (5.5m and 7.5m cables available)
  • Up to 240kW charging power for DC fast charging.
  • 27-inch LCD (1920 x 1080 resolution) touch screen
  • Device connectivity via Wi-Fi, Ethernet, Cellular Networks, RFID reader, and RS485.
  • Inbuilt protection monitoring of overcurrent, overtemperature, overvoltage, undervoltage, insulation monitoring, residual current, and ground faults.
  • Open Charge Point Protocol (OCPP) 1.6J communications (can be upgraded to OCPP 2.0.1)
  • Outdoor rated enclosure with IP55 (ingress protection rating) and IK10 (impact rating).
  • Dimensions:
    • Width 820mm / Height 1950mm / Depth 600mm (60-120 kW model)
    • Width 820mm / Height 1950mm / Depth 700mm (120-240 kW model)
