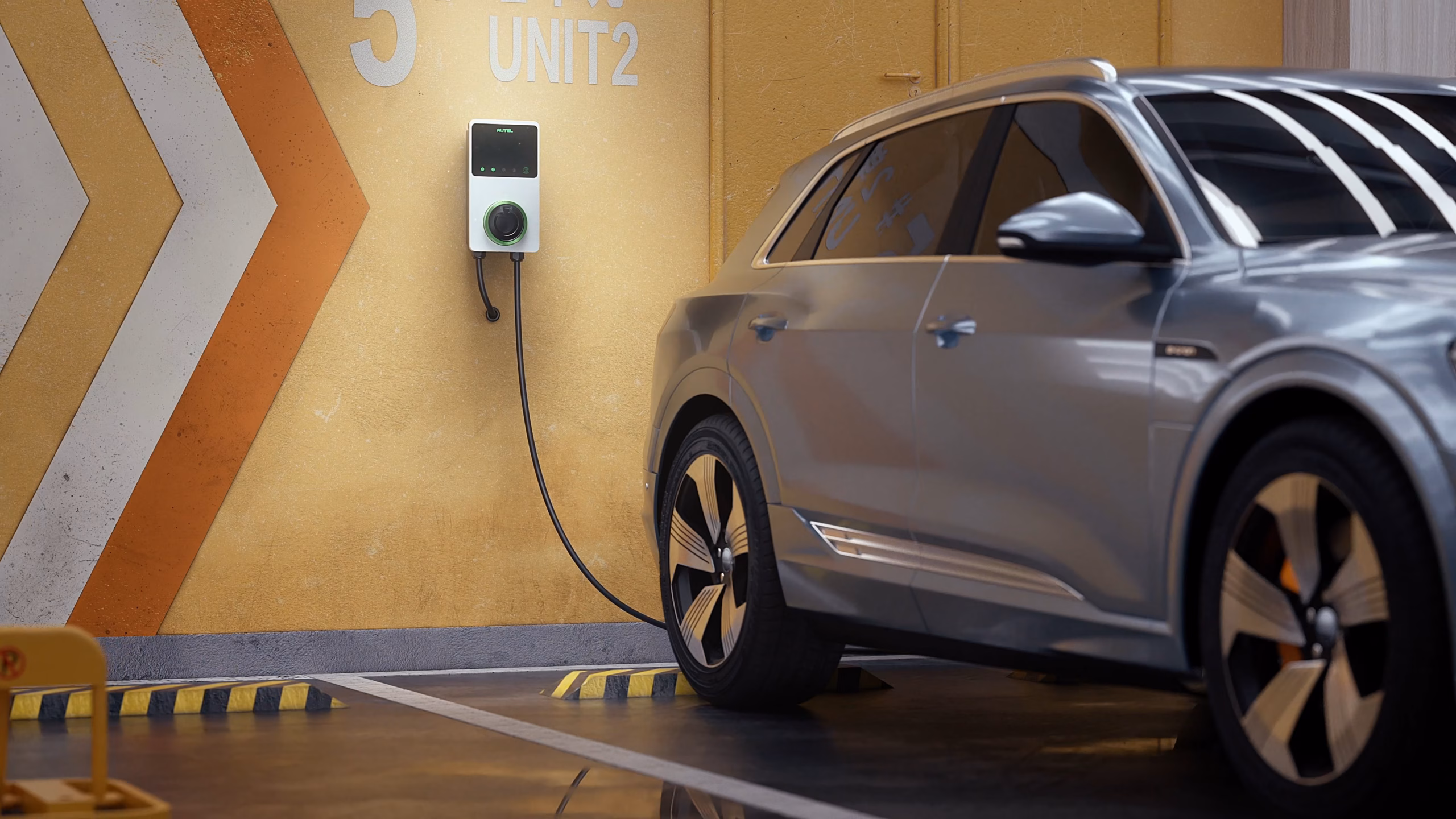

Autel wallbox screen MaxiCharger Thundergrid apartments smart EV charging

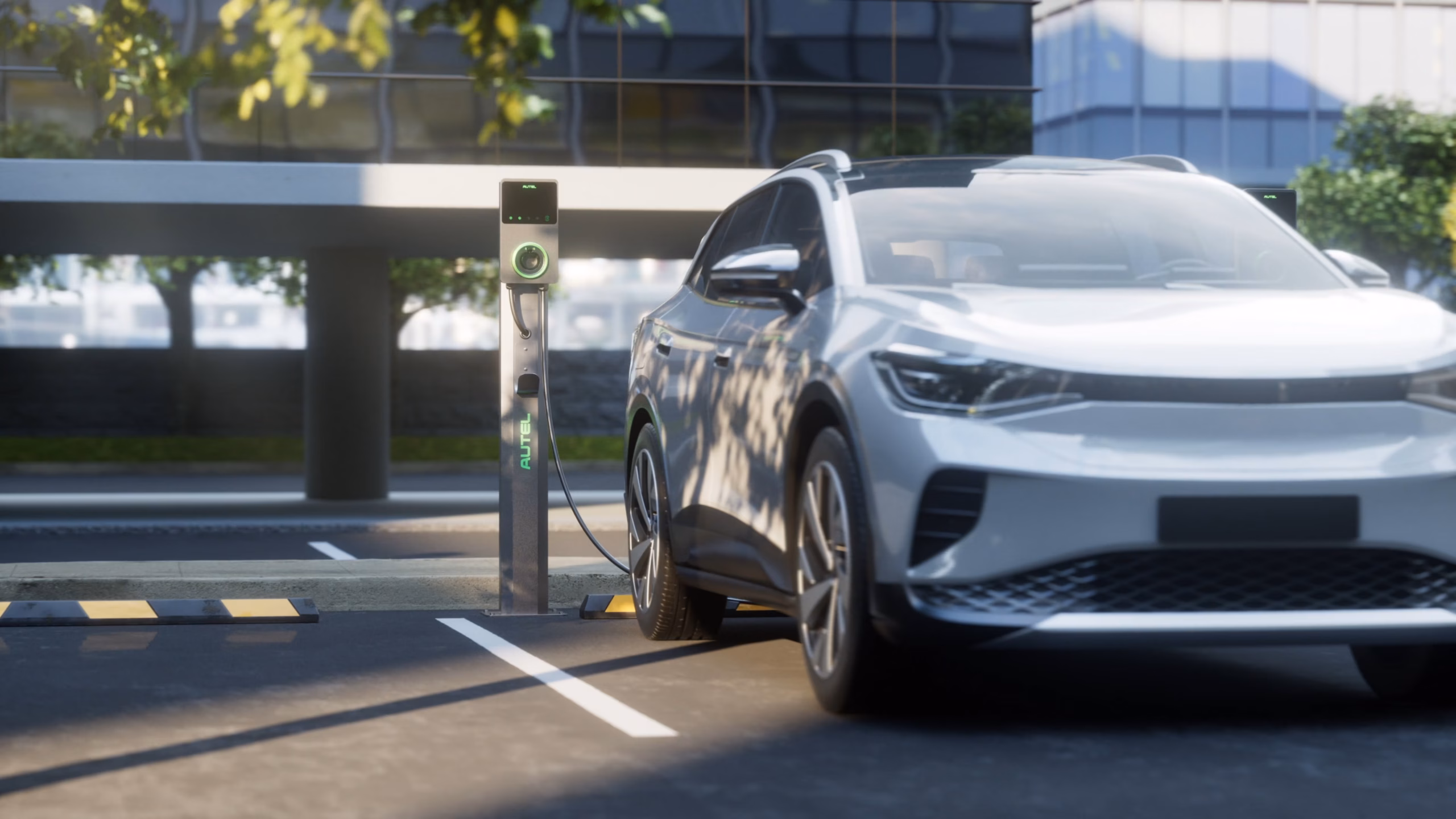

Autel Wallbox MaxiCharger screen Thundergrid business charging app
Autel MaxiCharger AC Wallbox with LCD screen - Image 5

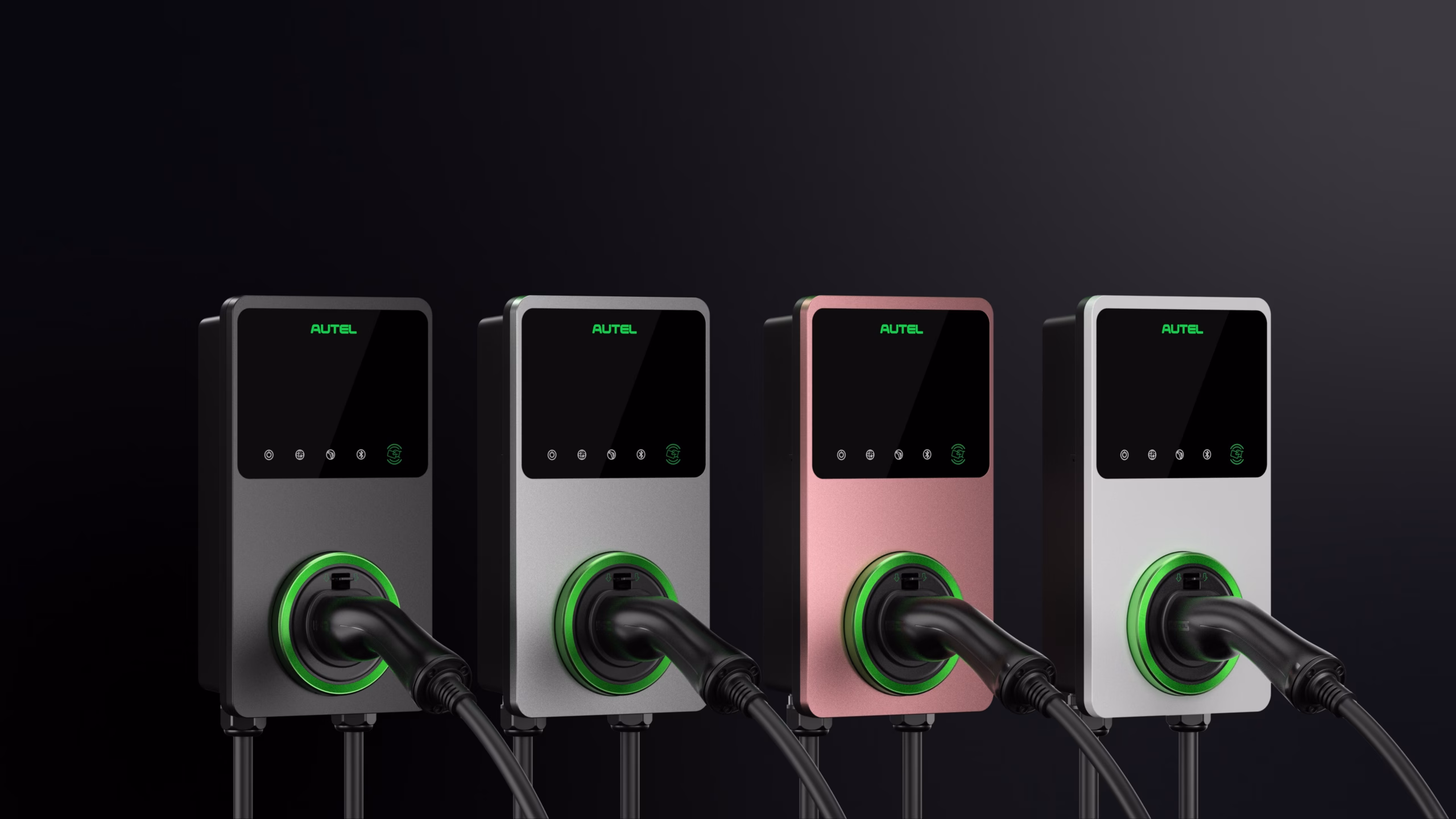

Autel MaxiCharger Wallbox screen colour options customisable
Hardware

Autel MaxiCharger AC Wallbox with LCD screen

Enquire

SKU: N/A Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

The perfect app-controlled smart EV charger for hospitality, businesses, fleets and commercial clients needing a reliable product integrating all features.



Compatible with all EV brands!

Great for

  • Commercial buildings where a number of chargers are required for different tenants, cost recovery is required and load management for the building is a priority.
  • Corporate and Government fleets that require EV charger and power cost recovery, extensive reporting features and management, a variety of access options and more.
  • Smart home charger installation for fleet drivers to refuel overnight from home, and track power use for reimbursement.
  • Apartment complexes that require billing for a communal power supply and cost recovery.
  • Hospitality / Retail and Car parks wishing to offer public charging.
  • Home charging where cable locking and RFID access may be required.
  • Delivers up to 22kW of power on three-phase power (7.4kW on single-phase power).
  • Dynamic load balancing. A separate energy meter is installed on the building’s distribution board to measure electrical currents and send real-time data to the charging station. The charging stations can respond and increase or decrease the power provided to EVs. This prevents overloading your building’s distribution board, avoiding circuit breaker trips and reducing the need for costly electrical upgrades.
  • Power sharing. Up to 8 MaxiCharger AC Wallbox units can be grouped together to share the available energy and assign charging priority to users who need it most. One unit will be assigned as the lead charger and will communicate to the others over a local area network.
  • LCD Touchscreen. A 5-inch colour touchscreen for user interface. This screen is used for starting and stopping charge sessions, showing the status of ongoing charging, and cost details of previous sessions.
  • PV Hybrid mode. Multiple charging modes compatible with applications utilizing renewable (solar) electricity. These modes can allow the charger to only be utilized when there is surplus renewable electricity available or permits the charger to receive power from both the solar energy and the grid power.
  • Several connectivity options. With a variety of connectivity options including Ethernet, Wi-Fi, and a SIM card for cellular communications this charger can be easily connected to a charge point management system or other chargers.
  • A variety of access options can be set to either:
    • Free access enabling users to simply plug in and charge (suitable for free chargers or when chargers are in a secure garage)
    • One-off charging for clients by scanning a QR code on the digital display screen of the charger that leads them straight to a payment portal to charge without downloading an app or creating an account
    • Require an RFID tag to unlock the charger (suitable for locations where you want to restrict access).
  • Customise your settings via the app. Access in-depth insights into your charging, set charging guidelines and power limits for smart, cost-efficient charging.
  • Tethered cable with Type 2 outlet (IEC 62196-2)
  • Type 2 socket (IEC 62196-2)
  • Up to 22kW charging power on three-phase power (or up to 7.4kW on single-phase power)
  • 5-inch LCD (800 x 480 resolution) touch screen
  • Device connectivity via Wi-Fi, Bluetooth, Ethernet, Cellular Networks, RFID reader, and RS485
  • Inbuilt protection monitoring of overcurrent, overtemperature, overvoltage, undervoltage, and ground fault including DC residual currents.
  • Integrated surge protection
  • Open Charge Point Protocol (OCPP) 1.6J communications
  • Protection Socket model IP54 (ingress protection rating) and cable model IP65. Both models have IK08 (impact rating).
  • Dimensions: Width 187mm / Height 336mm / Depth 115mm
Download technical data sheet
